当前位置:首页 - 产品中心 -   18路RTU扩展模块

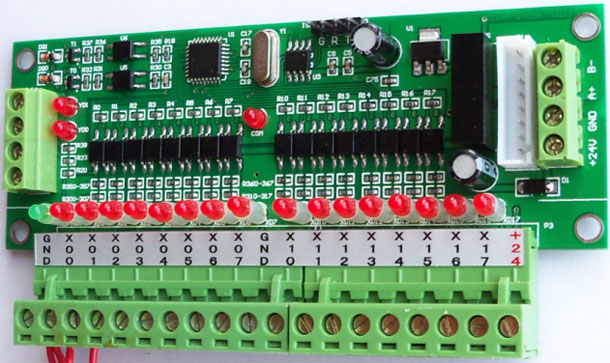

18路RTU扩展模块

产品型号: hw-16EX-2EY

特点

●16路DI输入,光电隔离(DC24V),也可以作为脉冲量输入,内置16个独立计数器,
  多种计数模式可选,详细请下载 hw-16EX 测试程序。
●02路DO输出,光电隔离(24V/500mA),可以驱动气动电磁阀、继电器、可以作为遥控、
  跳闸或者告警
●输入/输出通道 DCDC + 光电隔离,SMT生产工艺,无外部总线,较高的EMC性能。
●RS485通讯接口。


技术指标

●通道数量:16输入+2输出
●扫描周期:1毫秒
●隔离电压:网络隔离2500V
●通讯接口:RS485
●通讯参数:19200bps/1位起始位/1位停止位/偶校验位/MODBUS-RTU协议,
           可以连接国内外各种组态软件
●通信距离:1公里
●通讯介质:普通双绞线
●外型尺寸:121*45*20mm
●工作电源:24VDC/1瓦
●工作环境:温度-20~70℃,湿度≤85% RH


产品测试程序界面
